Tag: Valve

Showing all 4 results

•

  wishlist

  Butterfly Valve-Wafer Type Gear Operated

  Butterfly Valve-Wafer Type Gear Operated

  Sizes: 2″, 2.5″, 3″, 4″, 5″, 6″, 8″, 10″ & 12″

  Read more
•

  wishlist

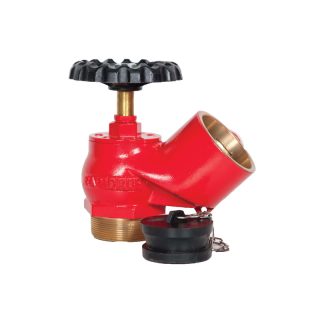

  Oblique Landing Valve

  Size: 65mm (2 ½”)
  Valve Type: Oblique
  Inlet Connection: HV005: BSPT male thread
  HV005-F: PN16 Flange
  Outlet Connection: 2 ½” (DN65) female instantaneous to BS336
  Working pressure: 15 bar (217 PSI)
  Body material: LG2 Gunmetal BS1400
  Finish: Red Painted
  Standards: BS 5041-1, BS 336
  Approvals: BSI Kitemark

  Read more
•

  wishlist

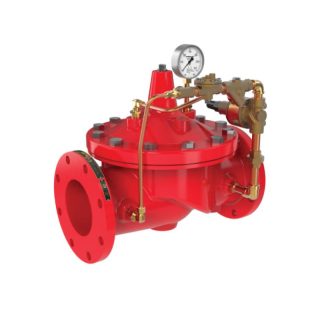

  Pressure Relief Valve

  Pressure Relief Valve

  Sizes: 4″, 6″

  Read more
•

  wishlist

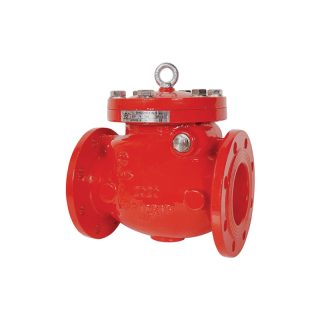

  Swing Check Valve Flanged Ends

  Size range: 50mm – 300mm (2″ – 12″)
  Body type: Flanged
  End connections: PN16 Flange to BS EN 1092-2:1997
  Maximum working pressure: 16 bar (232 psi) FM approved, 20.7 bar (300 psi) UL Listed, 25.0 bar (362 psi) LPCB approved
  Working temperature: 0°C to 80°C (32°F to 176°F )
  Body material: Ductile Iron
  Approvals: FM and LPCB Approved, UL Listed

  Read more
